¶ Specifications

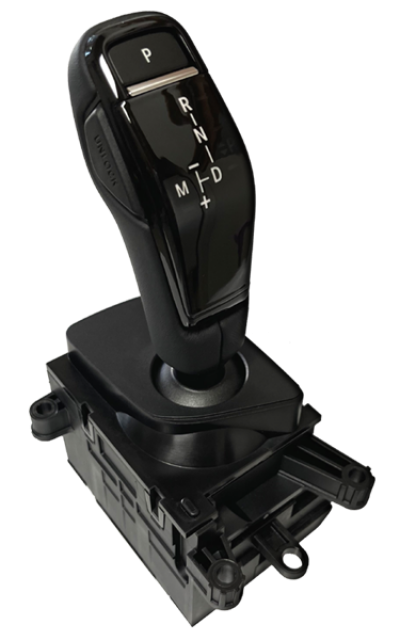

8HP shifter found on the MKV Supra (A90)
Has a 10-pin connector on the front of the shifter
Both RHD/LHD shifters are supported
¶ CAN Speed
500kb/s
¶ Wiring
It's recommended to wire these shifters on CAN3 regardless of transmission used.
¶ Shifter Pinout
| Pin # | Description | Connects to (8HP G-Series) | Connects to (All transmissions) |
|---|---|---|---|
| 1 | - | - | - |
| 2 | - | - | - |
| 3 | PTCAN Lo | CAN1 Lo | CAN3 Lo |
| 4 | PTCAN Hi | CAN1 Hi | CAN3 Hi |
| 5 | - | - | - |
| 6 | - | - | - |
| 7 | - | - | - |
| 8 | GND | GND | GND |
| 9 | - | - | - |
| 10 | +12V | WUP* | WUP* |
*CANTCU WUP is used to control the shifter powering logic.
