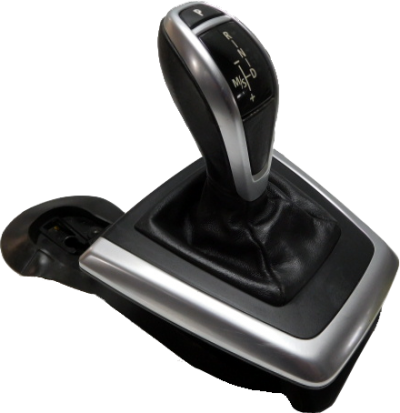

¶ Specifications
Connects to CAN3 on CANTCU when using 8HP/F-DCT
Connects to CAN1 on CANTCU when using E-DCT
¶ CAN Speed
500kb/s
¶ Shifter Pinout
| Pin # | Description | Connects to (8HP/F-DCT) | Connects to (E-DCT) |
|---|---|---|---|
| 1 | +12V | +12V | +12V |
| 2 | LIN | - | LIN (on DCT) |
| 3 | PTCAN Lo | CAN3 Lo | CAN1 Lo |
| 4 | PTCAN Hi | CAN3 Hi | CAN1 Hi |
| 5 | WakeUp | WUP | WUP |
| 6 | GND | GND | GND |
| 7 | Sport Button | - | Button |
| 8 | Sport Button | - | Button |
| 9 | P Supply | - | Park Lock |
| 10 | P Switch | - | Park Lock |
