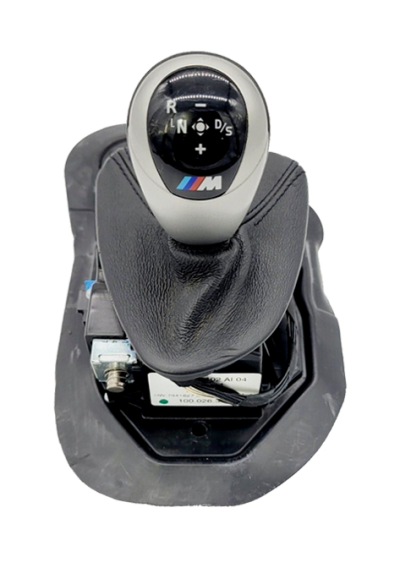

¶ Specifications
Connects to CAN3 on CANTCU when using 8HP/F-DCT
Connects to CAN1 on CANTCU when using E-DCT
¶ CAN Speed
500kb/s
¶ Additional Features
When using this shifter together with 8HP, Park can be triggered by holding shifter up while in neutral.
When using a DriveLogic button connected to this shifter, on 8HP transmissions, you can scroll through the car drive modes (ECO Pro/Comfort/Sport/Sport+) up and down.
¶ Shifter Pinout
| Pin # | Description | Connects to (8HP/F-DCT) | Connects to (E-DCT) |
|---|---|---|---|
| 1 | +12V | +12V | +12V |
| 2 | LIN | - | LIN (on DCT) |
| 3 | PTCAN Lo | CAN3 Lo | CAN1 Lo |
| 4 | PTCAN Hi | CAN3 Hi | CAN1 Hi |
| 5 | WakeUp | WUP | WUP |
| 6 | GND | GND | GND |
| 7 | DriveLogic Level - | - | Button |
| 8 | DriveLogic Level + | - | Button |
¶ DriveLogic Button Pinout
| Pin # | Description | Connects to (E9x M3 Shifter) | Connects to (CANTCU) |
|---|---|---|---|
| 1 | GND | GND | GND |
| 2 | - | - | - |
| 3 | DriveLogic + | Shifter Pin 8 | Digital Input |
| 4 | Backlight | +12V | +12V |
| 5 | DriveLogic - | Shifter Pin 7 | Digital Input |
