¶ Specifications

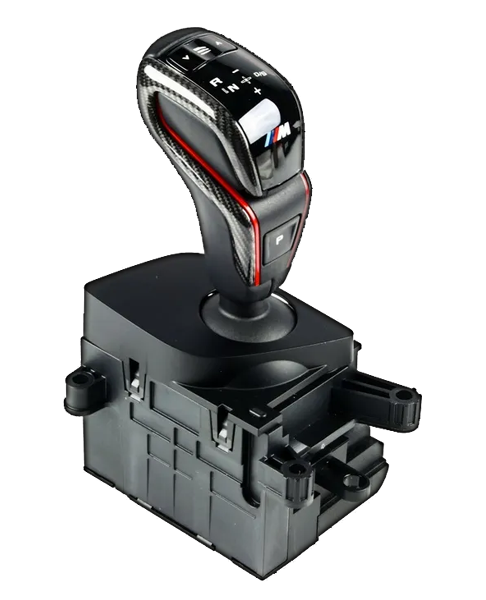

8HP shifter found on F90 M5
Has a 10-pin connector on the front of the shifter
¶ F90 M5 shifter DriveLogic button
When using the F90 M5 shifter with 8HP, the DriveLogic button on the shifter will control the 8HP drive modes (ECO Pro/Comfort/Sport/Sport+). When used with a DCT, the DriveLogic mode can be adjusted.
¶ CAN Speed
500kb/s
¶ Shifter Pinout
| Pin # | Description | Connects to |
|---|---|---|
| 1 | - | - |
| 2 | - | - |
| 3 | PTCAN Lo | CAN3 Lo |
| 4 | PTCAN Hi | CAN3 Hi |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | GND | GND |
| 9 | - | - |
| 10 | +12V | WUP |
