¶ Specifications

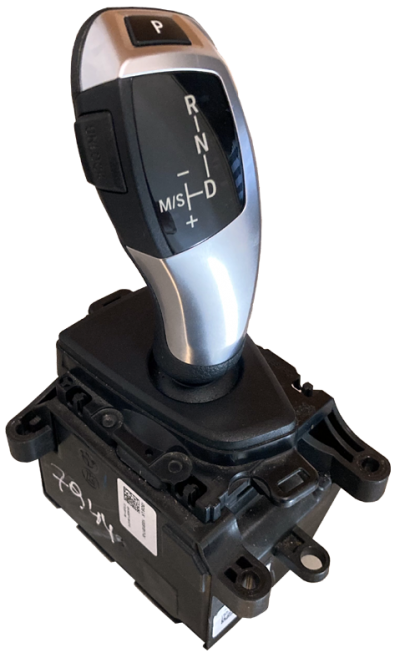

8HP shifter found on F0x/1x/2x/3x cars
Has a 10-pin or 8-pin (F0x/F1x pre-2012) connector on the front of the shifter
Connected to CAN1 & CAN2 when using a F-series 8HP transmission
Both RHD/LHD and regular/sport shifters are supported
Some examples of supported shifters part numbers (hyperlink opens crossreference):
- 61319296904 (regular LHD)
- 61319296896 (regular LHD)
¶ CAN Speed
500kb/s
¶ Shifter Pinout (10 pin)
| Pin # | Description | Connects to (8HP F-Series) | Connects to (others) |
|---|---|---|---|
| 1 | - | - | - |
| 2 | - | - | - |
| 3 | PTCAN Lo | CAN1 Lo | CAN3 Lo |
| 4 | PTCAN Hi | CAN1 Hi | CAN3 Hi |
| 5 | PTCAN2 Lo | CAN2 Lo | - |
| 6 | PTCAN2 Hi | CAN2 Hi | - |
| 7 | WakeUp | WUP | WUP |
| 8 | GND | GND | GND |
| 9 | - | - | - |
| 10 | +12V | +12V | +12V |
¶ Shifter Pinout (8 pin)
| Pin # | Description | Connects to (8HP F-Series) | Connects to (others) |
|---|---|---|---|
| 1 | +12V | +12V | +12V |
| 2 | WakeUp | WUP | WUP |
| 3 | PTCAN Lo | CAN1 Lo | CAN3 Lo |
| 4 | PTCAN Hi | CAN1 Hi | CAN3 Hi |
| 5 | GND | GND | GND |
| 6 | PTCAN2 Lo | CAN2 Lo | - |
| 7 | PTCAN2 Hi | CAN2 Hi | - |
| 8 | - | - | - |
