¶ Specifications

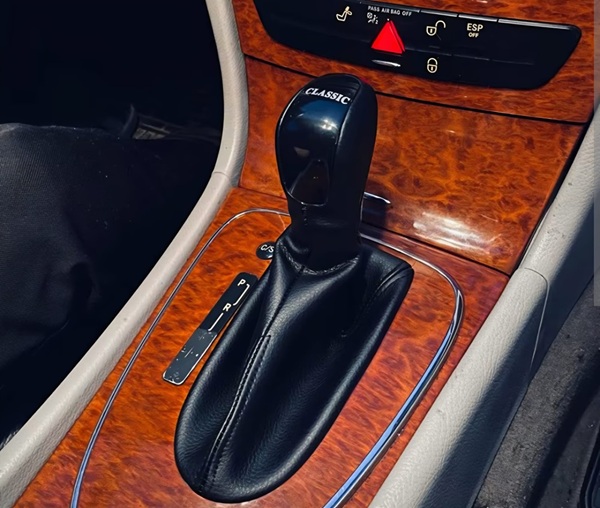

Found in various models like W211/209/220.
Connects to CANTCU CAN3.
¶ CAN Speed
500kb/s
¶ Shifter Pinout
| Pin # | Function | Color (MB wiring) | Connects to |
|---|---|---|---|
| 1 | 12v Ign | Red/Blue | +12V |
| 2 | Ground | Brown | GND |
| 3 | - | - | - |
| 4 | - | - | - |
| 5 | - | - | - |
| 6 | CAN Low | Green | CAN3 Low |
| 7 | CAN High | Green/White | CAN3 High |
| 8 | - | - | - |
¶ Part Numbers
8 Pin Plug housing
- OEM: 0285458328
- TE: 1-965389-2
Pins:
- AMP MQS unsealed: 5-963729-1 (0.5-0.75mm)
