¶ Specifications

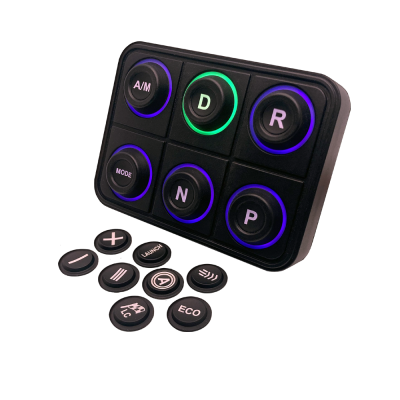

CAN-keypad manufactured by Blink Marine and preconfigured for use with CANTCU (J1939). Buttons can be defined for various functions in CANTCU Configurator.
- Park
- Reverse
- Neutral
- Drive / Shifter Mode
- Drive Modes (8HP)
- DriveLogic Modes (DCT)
- Launch Control
- Drag Shift Mode
- Keypad dimming / backlight
- etc…
¶ CAN Speed
250/500/1000kbps (Pre-defined)
¶ Keypad Pinout
| Pin # | Color | Description | Connects to |
|---|---|---|---|
| 1 | Blue | CAN Lo | CAN3 Lo |
| 2 | White | CAN Hi | CAN3 Hi |
| 3 | Black | GND | GND |
| 4 | Red | +12V | +12V |
¶ Converting from Blink protocol
Our keypads are pre-programmed to a specific communication layout. If you have a universal Blink keypad, you can configure it to a “CANTCU-keypad” by sending it specific configuration commands through CAN. Note that you need basic knowledge and understanding of CAN-bus in general, and a suitable CAN-tool/device/analyzer that is able to send out frames on the CAN-bus.
- Disconnect ALL other devices except the keypad from the CAN-bus
- Make sure that the CAN-tool/device/analyzer you are using is configured to the same bitrate as the keypad. If you're unsure about the keypad bitrate you will have to cycle through different bitrates until you find the correct one.
- Send the necessary configuration messages to the keypad, table below.
| CAN ID | Message | Function | Description |
|---|---|---|---|
| 615h | 2B FF 20 01 01 | Change from CANopen to J1939 | Optional, necessary only if keypad is currently communicating through CANopen (standard frames) |
| 18EF2100h | 04 1B 70 13 6A FF FF FF | Change Keypad Identifier | Required |
| 18EF1300h | 04 1B 77 14 FF FF FF FF | Set Periodic Transmission to 200 ms | Required |
| 18EF1300h | 04 1B 71 01 FF FF FF FF | Enable Periodic Key-state Transmission | Required |
| 18EF1300h | 04 1B 37 02 FF FF FF FF | Set LED Management Mode | Required |
| 18EF1300h | 04 1B 6F xx FF FF FF FF | Set Baud Rate | Optional, depending on CAN bitrate, normally 500kbps xx = 02 → 500kbps xx = 03 → 250kbps |
