NOTE: BETA SUPPORT IN v1.0.139 !!!
¶ Specifications

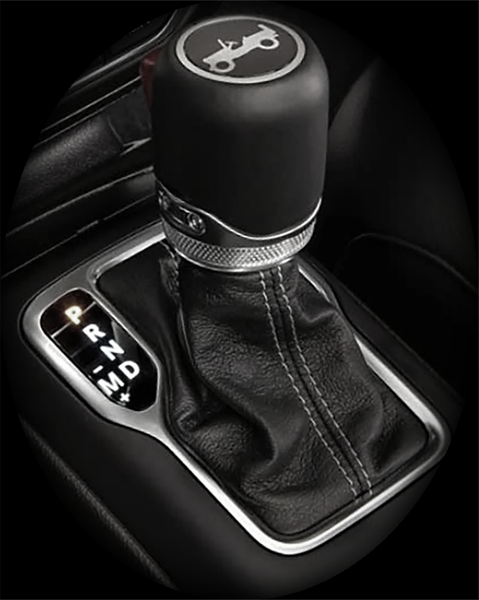

Found on 2018-2025 Jeeps
P/N example: P04670713AC
¶ CAN Speed
500kb/s
¶ Shifter Pinout
| Pin # | Wire Color | Description | Connects to |
|---|---|---|---|
| 1 | Red/Yellow | +12V | +12V |
| 2 | - | - | - |
| 3 | - | - | - |
| 4 | Gray | CAN Hi | CAN3 Hi |
| 5 | Yellow | CAN Lo | CAN3 Lo |
| 6 | Black/Orange | GND | GND |
