NOTE: BETA SUPPORT IN v1.0.140 !!!
¶ Specifications

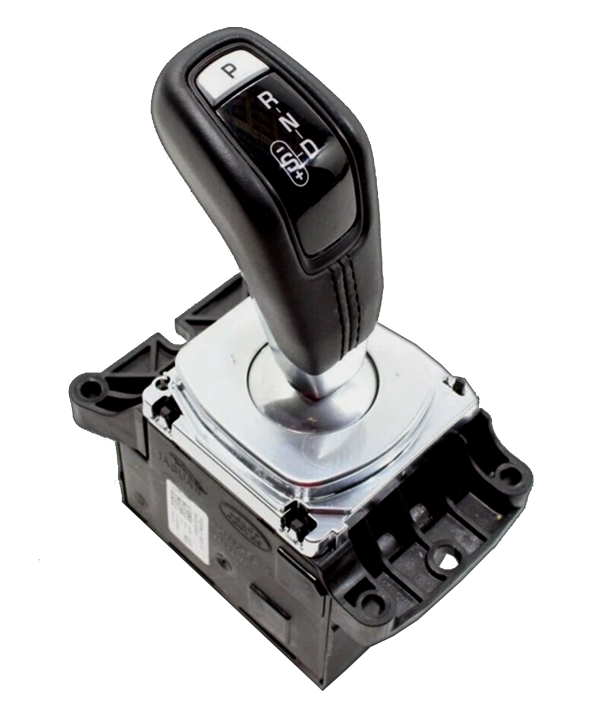

P/N example: JLR KK62 - 7E453 - AA 30S LK 10338510 L494 19MY
¶ Shifter Pinout
| Pin # | Wire Color | Description | Connects to |
|---|---|---|---|
| 1 | Black/Yellow | GND | GND |
| 2 | Green/Orange | CAN Hi | CAN3 Hi |
| 3 | Grey/Blue | CAN Lo | CAN3 Lo |
| 4 | - | - | - |
| 5 | - | - | - |
| 6 | - | - | - |
| 7 | - | - | - |
| 8 | - | - | - |
| 9 | White/Red | Ignition | WUP |
| 10 | Brown/Red | +12V | +12V |
¶ CAN Speed
500kb/s
