¶ Specifications

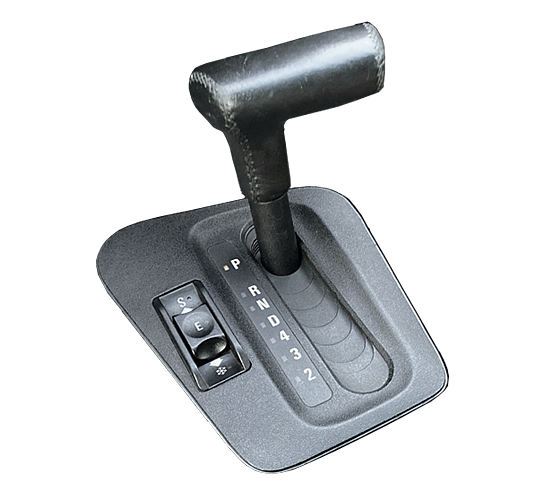

OEM Shifter found in E36 cars

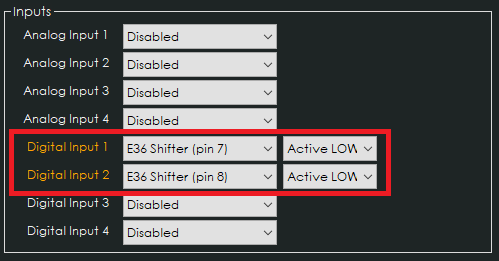

Uses two freely chooseable Digital Inputs connected to shifter base to distinguish between P-R-N-D
Shifter travel needs to be limited to only accept positions between P and D
¶ Shifter Base Pinout
| Pin # | Description | Connects to |
|---|---|---|
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | GND | GND |
| 6 | - | - |
| 7 | L2 | DIN (E36 Shifter Pin 7) |
| 8 | L4 | DIN (E36 Shifter Pin 8) |
