¶ Specifications

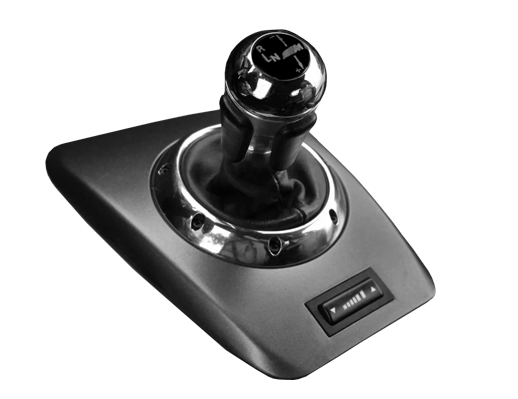

OEM Shifter found in E46 SMG equipped cars
Can be connected to CANTCU through the E46 SMG Shifter Adapter Board
All shifter & DriveLogic button functions available normally
¶ Requirements

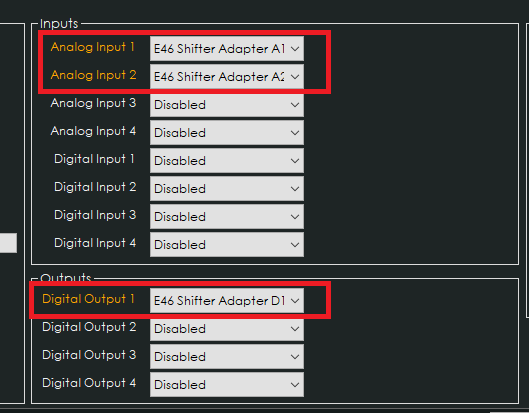

Two freely chooseable Analog Inputs configured as A1 and A2
One freely chooseable Digital Output configured as D1
¶ Shifter Adapter Board Pinout
| DT04-6P Pin # | Description | Connects to (CANTCU) |
|---|---|---|
| 1 | +12V | +12V |
| 2 | Analog Signal 1 | AIN |
| 3 | +5V | +5VOUT |
| 4 | Digital Output | DOUT |
| 5 | Analog Signal 2 | AIN |
| 6 | GND | GND |
