Race+ is the recommended TCM software for supported ZF 8HP installations with CANTCU.
Race+ retains the smooth, refined drivability of the OEM 8HP software while adding full live control over transmission behaviour and additional Race+ functions.
Transmission adjustments such as shift maps, RPM limits, converter behaviour and other Race+ settings can be changed directly through CANTCU Configurator without reflashing the transmission.
Race+ also provides one common installation and wiring method across supported 8HP transmissions, regardless of the original vehicle manufacturer.
¶ Support Matrix
| Transmission | Race+ Software |
|---|---|
| ZF 8HP45 | Supported |
| ZF 8HP50 (F) | Expected 10/2026 |
| ZF 8HP50 (G) | Expected 9/2026 |
| ZF 8HP70 | Supported |
| ZF 8HP75 (F) | Expected 10/2026 |
| ZF 8HP75 (G) | Expected 9/2026 |
| ZF 8HP90 | Supported |
| ZF 8HP95 (F) | Expected 10/2026 |
| ZF 8HP95 (G) | Expected 9/2026 |
Support applies regardless of the transmission's original vehicle manufacturer.
¶ Features
Race+ includes:
- OEM-level drivability and refinement
- Fully live transmission configuration through CANTCU Configurator
- Transbrake + Bump
- Virtual Clutch
- Live-tunable Drive and Sport shift maps
- Additional User-Defined Shift Map triggered by an input (DIN/CAN)
- Neutral Idle Clutch control
- Gear lockouts per Drive Mode
- Converter unlock
- Direct Flash support
- Automatic adaptation saving during runtime
- Additional realtime values and diagnostics
Individual features can be configured through the CANTCU Configurator.
¶ Installation
For new 8HP installations, Race+ is the preferred solution and uses one common wiring method regardless of the transmission donor vehicle. Note that previously built wiring will also work without any changes.
See Race+ 8HP Installation for wiring and installation instructions.
Race+ is installed using the 8HP TCM Tool. For first-time installation, create a stock backup before programming Race+.
See 8HP TCM Tool for the programming procedure.
¶ Configuration

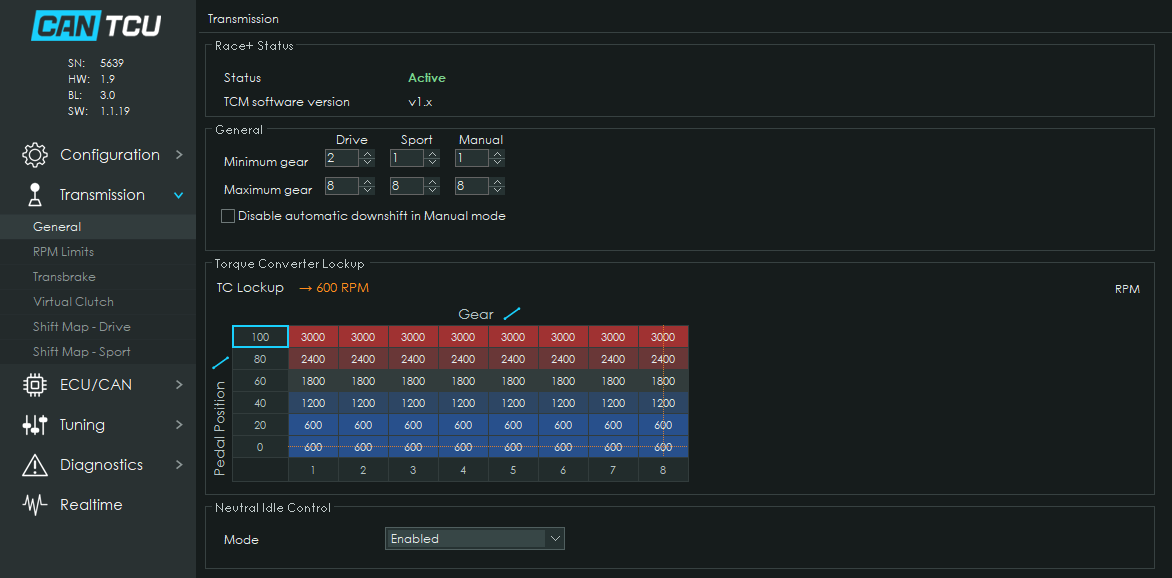

Race+ settings are available in the CANTCU Configurator after Race+ has been installed.
See Race+ Configuration for the available settings.
¶ Realtime Values
Race+ adds additional realtime values for monitoring, logging and external display use.
See Race+ Realtime Values for the available values.
¶ Legacy Software
Stock, CANTCU OEM+ and compatible third-party TCM software remain supported for existing or special installations.
These use the legacy transmission-specific wiring and installation instructions.
